Acute Abdomen in Gynaecology - Ultrasound

Julien Puylaert

Amsterdam UMC and Haaglanden MC, The Hague

Publicationdate

This is a pictorial essay of the various gynaecological conditions that may cause acute abdominal pain, as far as they are encountered in daily radiological practice.

Conditions which present during a known pregnancy like miscarriage, early ectopic pregnancy, uterine rupture and placental abruption, as well as puerperal endometritis, are not included as they belong to the professional terrain of the gynaecologist.
These conditions are rarely seen in the daily radiological practice of acute abdomen.

For critical comments and additional remarks:  j.puylaert@gmail.com

Introduction

This table summarizes the gynaecological diseases that may present with acute abdominal pain.

It is divided into pathology in:

  • Pregnant women
  • Women in the post-partum period
  • Non-pregnant women

Normal US anatomy

Uterus and ovaries are best visualized with the bladder half-full.

A very full bladder is unpleasant for the patient, hampers adequate compression and pushes organs away from the ventral abdominal wall, excluding the use of high frequency probes.

In the sagittal view the uterus, cervix, vagina, anorectum and urethra (u.) can be identified, as well as the collapsed anterior and posterior fornix of the vagina.

Studying a uterus, which is in retroflexion, requires more bladder filling.

Transverse view allows visualization of both uterus and ovaries.

The uterus itself may also provide an acoustic window to visualize the ovaries.

With the uterus in anteflexion, the ovaries are quite ventrally localized and can often be visualized using the right and left iliac vessels as an acoustic window (figure).

Dominant follicle

In women of the fertile age the normal inactive ovaries show moderate vascularization (left image).

During the pre-ovulatory phase the dominant follicle can be identified by its “ring-of-fire” (right image).

Luteal body

After the ovulation the dominant follicle becomes smaller (left) and in the absence of pregnancy, turns into a crenulated luteal body (right).

Transvaginal ultrasound (TVUS) has great advantages in visualizing the uterus and ovaries.

It can also be used for non-gynaecological conditions such as appendicitis, diverticulitis, etc.

The use of transvaginal ultrasound will be dealt with in a different article: TVUS for non-gynaecological conditions.

Acute gynaecological conditions in pregnancy

Ectopic pregnancy

The most important cause of acute abdominal pain in pregnant women is ectopic pregnancy.

Therefore in every woman of the fertile age group with acute abdominal pain, β-hCG levels are determined.

The US hallmark of an ectopic pregnancy is the combination of elevated β-hCG levels in serum or urine, with an empty uterus.

Normal empty uterus in ectopic pregnancy Normal empty uterus in ectopic pregnancy

There are however many pitfalls, especially in early ectopic pregnancy.

Small intracavitary fluid collections and thickened endometrium may lead to the erroneous diagnosis of an intra-uterine pregnancy.

On the other hand, a very early intra-uterine pregnancy may not yet be visible at US.
All these pitfalls belong to the exclusive terrain of the gynaecologist and will not be discussed here.

Unexpected ectopic pregnancy Unexpected ectopic pregnancy

Pregnancy may be unknown to clinician and patient, and an ectopic pregnancy may present with atypical symptoms.
In such cases, the radiologist can be confronted with an unexpected ectopic pregnancy and must be aware of the US findings.

case 1
This 48 year old woman presented with appendicitis-like symptoms and was unaware of being pregnant.

US showed a large heterogeneous, avascular mass (arrowheads) to the right and dorsal of the uterus, suspect for a large blood clot.
There was also some liquified blood higher up (*).

Subsequently performed pregnancy test was positive, and laparoscopy confirmed a ruptured tubal pregnancy.

Unexpected ectopic pregnancy. Unexpected ectopic pregnancy.

case 2

In this patient submitted for suspected stomach perforation, a large inhomogeneous mass of blood clot (arrowheads) in the left peritoneal cavity was visualized (right upper image).

Such a large clot can easily be mistaken for normal mesenterial fat or bowel.
Awareness and careful inspection of this mass, which lacks peristaltic movements, are helpful findings to differentiate.

This patient had also a lot of free fluid, which at puncture was liquified blood (right lower image).

Laparoscopy demonstrated 1.5 liter of blood and a ruptured tubal pregnancy.

Ectopic pregnancy with living fetus. Ectopic pregnancy with living fetus.

case 3

This patient was submitted for suspected perforated appendicitis.

US showed free fluid and to the right of the uterus (U.), a gestational sac containing a living fetus.

Fetal heartbeat was documented by TVUS with M-mode (right lower image).

A living fetus is found in less than 10 % of all ectopic pregnancies.

Luteal body bleeding mimicking ectopic pregnancy Luteal body bleeding mimicking ectopic pregnancy

case 4

Luteal body bleeding mimicking an ectopic pregnancy


In this young woman, US demonstrated a large quantity of clotted (C.) and liquified blood (*) around the uterus, suspect for ectopic pregnancy. However,  β-HCG levels in both urine and serum were extremely low.

US guided puncture in the liquified part confirmed blood. (bl. = bladder)

Laparoscopy revealed severe bleeding from a luteal body, which was successfully coagulated.

ischemic myoma in pregnancy ischemic myoma in pregnancy

Ischemic myoma

During pregnancy a myoma may increase in size and outgrow its vascularization.

case 1

This 25 year old pregnant woman presented with a palpable, painful mass in the RLQ, suspect for an “appendiceal mass”.

US revealed a hypoechoic, inhomogeneous, hypovascular round solid mass arising from the myometrium, and “bulging” into the abdominal wall during compression.

The diagnosis was an ischemic myoma.
She was successfully treated with analgesics.
Labor inhibitors were not necessary.

Necrotic myoma in pregnancy Necrotic myoma in pregnancy

case 2

Here another case of an ischemic myoma.
The extrinsic location in this case suggests that this is a pedunculated myoma (arrowheads).

This patient was successfully treated with analgesics and labor inhibitors.

Torsion of luteal cyst in early pregnancy Torsion of luteal cyst in early pregnancy

Torsion of enlarged adnex

Adnexal torsion causes sudden, severe pelvic pain.
Risk factors for adnexal torsion include pregnancy, induction of ovulation and ovarian enlargement to > 4 cm (particularly by cysts or benign tumors).

case 1
This pregnant patient presented with acute LLQ pain.
US revealed an intact pregnancy of 8 weeks and left of the uterus a painful, non-compressible (arrowheads), partly cystic, partly solid mass, suspect for adnexal torsion.

At laparoscopy a 360 degrees torsion of a luteal cyst was found.
After detorsion the liquid component was aspirated.

Intermittent torsion of dermoid cyst during pregnancy. a and v = right iliac artery and vein) Intermittent torsion of dermoid cyst during pregnancy. a and v = right iliac artery and vein)

case 2

A 21-week pregnant woman was submitted with suspected appendicitis. She had similar attacks before.

US shows an intact pregnancy and in the right lower quadrant a large dermoid cyst (arrowheads).

At laparotomy the dermoid cyst was oedematous, probably due to intermittent torsion.
Ovary-sparing resection was successful.

Acute conditions in non-Pregnant women

Persistent haemorrhagic cyst. Persistent haemorrhagic cyst.

Persistent or hemorrhagic cyst.

In young women with acute abdominal pain, an enlarged cystic adnex with or without some free fluid, is a frequent finding.

In most cases, this is a functional cyst, which has ruptured or has been bleeding.
Lab findings are usually normal with a low CRP and the US abnormalities disappear within days or weeks.

case 1
In this young woman a large partly cystic mass was found with a solid, avascular component (clot).
CRP remained low and the pain was gone in two days.
Follow up US after 6 weeks showed complete normalization.

It is important to realize that these US findings may also be completely asymptomatic.

Persistent haemorrhagic cyst. Persistent haemorrhagic cyst.

case 2
In this young woman with two days of RLQ pain and a CRP of 2, a right-sided, thin-walled ovarian cyst was found at US.

TVUS shows the typical, very thin, lace-like septations and also the residual normal, follicle-containing ovary “squeezed” to the side by the haemorrhagic cyst.
Complete resolution after 6 weeks.

Ruptured follicle. (ut = uterus) Ruptured follicle. (ut = uterus)

case 3
These images are of a woman of 17 years old with acute, severe RLQ  pain. CRP 1.

US reveals an ill-defined thick-walled right ovarian cyst and free fluid (*) in Douglas pouch.

TVUS confirms the fluid and a partially collapsed, easily compressible cyst in the right ovary.
The left ovary is normal (right lower image).

The pain gradually decreased and lab-findings remained normal.
Within one week there was complete normalization of the US findings.

The most likely diagnosis: ruptured functional cyst.

Well-compressible, haemorrhagic cyst

case 4
This functional, hemorrhagic cyst was a coincidental finding and could easily be compressed against the promontory (p).

Complete resolution of the abnormalities within two weeks.

Haemorrhagic cyst with clot. Haemorrhagic cyst with clot.

case 5
Persistent haemorrhagic cysts often contain solid, avascular, inhomogeneous masses representing clots.

Retractility of such clots often results in concave contours (arrowheads).

Pitfall: asymptomatic right ovarian cyst in woman with appendicitis.  (V= iliac vein) Pitfall: asymptomatic right ovarian cyst in woman with appendicitis. (V= iliac vein)

case 6
In this young woman a conspicuous hemorrhagic right ovarian cyst (arrowheads) was visualized and initially held responsible for her RLQ symptoms.

Further examination however revealed an acute appendicitis (arrow).
The cyst was an asymptomatic coincidental finding.

PID

Pelvic Inflammatory Disease (PID) is the common denominator for all ascending infections of cervix, endometrium, ovary and Fallopian tubes and its extension into the peritoneal cavity.

The causes are Chlamydia, gonorrhoea and Gram-negative organisms, but often cultures remain negative, and then the diagnosis is based on clinical findings and a good effect of antibiotics.

PID is often diagnosed and treated on clinical grounds, however US is often performed to diagnose and stage PID and to exclude alternative conditions as appendicitis.

PID due to Chlamydia infection PID due to Chlamydia infection

PID case 1

A 32 year old woman  was treated for suspected cystitis with antibiotics by the family-doctor. Now submitted with clinically suspected appendicitis and CRP 190 and WBC 9.

US was normal, but of moderate quality due to obesity. CT showed an 8 mm, but otherwise normal looking appendix (arrow) and bilateral fatty stranding of the peritoneal fat (arrowheads).

The appendix looked “too normal” for a CRP of 190, so the most likely diagnosis was PID and antibiotics were started.

Two days later the PCR for Chlamydia was positive.

PID in the LLQ PID in the LLQ

PID case 2

A young woman with severe pain in the LLQ and a CRP of 530 and a WBC of 22.

The only abnormal US finding was some hyperechoic preperitoneal fat in the LLQ.
CT confirms the US findings.
Normal appendix and adnexa (not shown here).

The most likely diagnosis was PID.
There was good reaction on antibiotics and no microorganism was found.

Early PID. Early PID.

PID case 3

Young woman with acute RLQ pain and a CRP of 140.
Abdominal US was completely normal.

TVUS showed subtle hyperemia of both tubes and ovaries, surrounded by hyperechoic, moderately compressible, fatty tissue (*).
This represents slightly inflamed peritoneal, mesenterial and omental fatty tissue.

CT confirmed a normal appendix (arrows) and subtle diffuse hyperdensity of the peritoneal, mesenterial and omental fat (*).

She quickly recovered with antibiotics. Cultures and PCR remained negative.

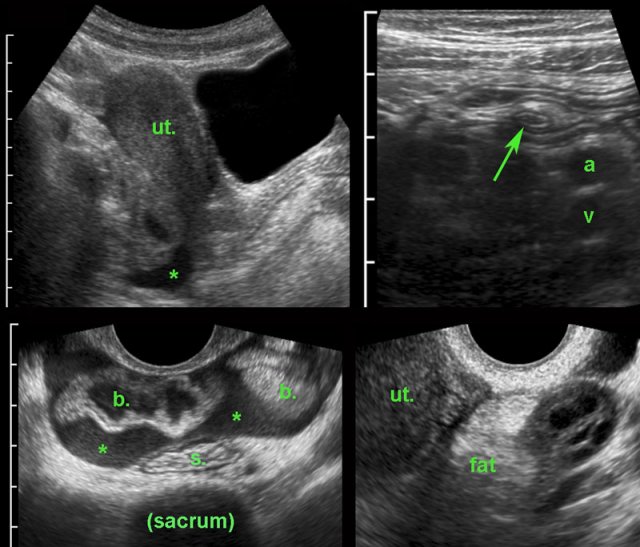

Paralytic ileus in gonorrhoeic PID. Paralytic ileus in gonorrhoeic PID.

PID case 4

These images are of a very ill, painful young woman with generalized peritonitis and a CRP of 250, clinically suspect for perforated appendicitis.

US showed aperistaltic small bowel (b.).
The appendix was not visualized.

TVUS showed a normal uterus and normal ovaries (arrowheads), which were surrounded by hyperechoic tissue (*).

CT confirmed the paralytic ileus and showed a normal appendix (arrow).

PCR was positive for gonorrhoea.

Early PID with secondary thickened appendix. (ut. = uterus, b = small bowel, a and v = iliac artery and vein, s = sigmoid) Early PID with secondary thickened appendix. (ut. = uterus, b = small bowel, a and v = iliac artery and vein, s = sigmoid)

PID case 5

Young woman presented with RLQ pain and a CRP of 70, suspect for appendicitis.

US showed some turbid fluid in Douglas pouch (*).
At the spot of maximum tenderness a compressible appendix (arrow) was seen, surrounded by a little hyperechoic fat.

TVUS shows that the free fluid is turbid, in view of the high CRP probably pus.
The ovaries had a normal aspect, but were surrounded by hyperechoic, inflamed fat.

Diagnosis:
Early PID with minimal secondary reaction of peritoneum and appendix.
One day later the PCR for Chlamydia was positive.

PID with secondarily thickened appendix. PID with secondarily thickened appendix.

PID case 6

A 29-year old woman presented with suspected appendicitis. TVUS showed turbid fluid (*) in Douglas pouch, in combination with a CRP of 230, indicating pus.

The appendix (arrow) was small, but surrounded by hyperechoic fat. In view of the high CRP, it was decided that this was a case of PID with mild (secondary) inflammation of the appendix, rather than a case of appendicitis.

The patient was not operated, and responded well on antibiotics.

Key to avoid an unnecessary appendectomy in these cases, is to note the discrepancy between the relatively mild inflammation of the appendix and the high CRP.

Confusing peri-appendicitis in PID, leading to unnecessary appendectomy. Confusing peri-appendicitis in PID, leading to unnecessary appendectomy.

PID case 7

Ill young lady with suspected appendicitis, CRP 63, WBC 17.
The next day CRP was 400.

US showed a 8 mm appendix (arrows) and diffuse hyperechoic fat in between hypoechoic tissue.
The ovaries were not well visualized.

CT confirmed a 9 mm appendix (arrows) and diffuse fat stranding of the ventral fatty tissue (*).
Normal size and aspect of the ovaries (not shown here).

At diagnostic laparoscopy a purulent peritonitis was found and an abnormal appendix with fibrinous exudate was removed.
The pathological specimen showed only peri-appendicitis, not primary appendicitis.

The day after the operation the PCR of the cervix was positive for Chlamydia.

Pitfall: Omental infarction mimicking PID. Pitfall: Omental infarction mimicking PID.

Omental infarction mimicking PID

A young woman presented with isolated pain in the RUQ and an elevated CRP.

The only abnormality at US and CT was a cake-like, rather outlined area of fat stranding adjacent to the ventral abdominal wall in the RUQ,  just above the level of the umbilicus.

The shape and  typical location strongly plead for segmental omental infarction rather than PID.

Pitfall: Familial Mediterranean Fever (FMF) mimicking PID. Pitfall: Familial Mediterranean Fever (FMF) mimicking PID.

Familial Mediterranean Fever

A 27-year old woman had a history of two episodes of severe LLQ respectively RLQ pain, with a high CRP. She had no fever.

US was normal, but CT showed diffuse fatty preperitoneal stranding (*).
Both times she was diagnosed  with PID and treated with antibiotics.
Symptoms disappeared, and cultures remained negative.

In view of her Turkish background, the third time the diagnosis of Familial Mediterranean Fever was suggested, and eventually genetically proved.
She had no relatives with FMF, but her parents were cousins.

No more attacks after colchicin.

Fitz-Hugh-Curtis (FHC) with secondary thickening of the appendix. Fitz-Hugh-Curtis (FHC) with secondary thickening of the appendix.

Fitz-Hugh-Curtis


case 1

Young, ill lady with severe RUQ pain and an elevated CRP, clinically suspect for cholecystitis or perforated appendicitis.

US shows a relatively high localization of an 8 mm appendix, which is well-compressible (arrowheads), surrounded by some hyperechoic fat and clearly not responsible for her clinical symptoms and lab findings.

Higher up there is some free fluid and hyperechoic fat (arrows) around the tip of the right liver lobe. No other abnormalities were found, especially normal aspect of uterus and ovaries.

PCR tests of cervix and urethra, one day later were positive for Chlamydia.

Diagnosis:
Fitz-Hugh-Curtis (FHC). FHC is also named “perihepatitis” and is in fact a sort of “PID in the RUQ”, where the infection from the right Fallopian tube spreads directly to the perihepatic space.

Late sequelae of FHC are the well-known “violin string” adhesions between liver and abdominal wall at laparoscopy.

Fitz-Hugh-Curtis (FHC) Fitz-Hugh-Curtis (FHC)

case 2

A 29-year old woman presents with progressive pain in the RUQ during a week, radiating to her right shoulder. The family doctor determined her CRP, which was 145.

US showed a little perihepatic fluid (arrows) and some fatty infiltration right of the umbilicus (**).

CT confirms the US findings. CA-125 was elevated (200). The differential diagnosis was FHC, tuberculous peritonitis or malignant peritonitis. US guided omental biopsy revealed no malignancy.

Two days later PCR of cervix and urethra was positive for Chlamydia. Complete cure after antibiotics.


Fitz-Hugh-Curtis in patient with coincidental gallstones. Fitz-Hugh-Curtis in patient with coincidental gallstones.

case 3

Twenty year old woman with severe RUQ pain and a high CRP, suspect for acute cholecystitis.

US showed a compressible, thin-walled gallbladder with multiple stones. This aspect is not compatible with cholecystitis and does not explain the severe pain and the high CRP. There was hyperechoic fat between the abdominal wall and the right liver lobe (arrowheads).

CT confirmed some perihepatic fat stranding (arrowheads) and (secondary) enhancement of the subcapsular liver parenchyma (arrows), confirming the diagnosis of FHC.

One day later the PCR was positive for Chlamydia.

PID: Right sided oophoritis. PID: Right sided oophoritis.

Oophoritis


case 1

Ill, young woman with  RLQ  pain and a CRP of 160.
TVUS shows a hyperemic, swollen right ovary, with irregularly defined, thick-walled follicles, filled with debris-like material (pus), surrounded by hyperechoic fat (*).

PCR was positive for Chlamydia the next day.

Right-sided oophoritis. Right-sided oophoritis.

case 2

Young woman with acute pain RLQ and a CRP of 75.
TVUS shows an irregularly enlarged, inhomogeneous right ovary with blurred follicles and surrounded by hyperechoic fat (*).

The left ovary is slightly hyperaemic, but otherwise normal.
There is turbid fluid (f.) in Douglas pouch, representing pus (CRP 75).

Left sided tubo-ovarian abscess (TOA) Left sided tubo-ovarian abscess (TOA)

Tubo-ovarian abscess


TOA case 1

Young, very ill woman with acute LLQ pain and a CRP of 260. Left of the uterus a massively enlarged (6 x 7 x 8 cm) ovary is found.
The individual follicles are enlarged, ill-defined and filled with turbid fluid (pus).
Note the hyperechoic halo around this inflamed mass.

Since there is no apparent involvement of the Fallopian tube, strictly speaking this is an oophoritis.

Nevertheless, usually the term of  tubo-ovarian abscess is used.

Bilateral tubo-ovarian abscesses with generalized peritonitis. Bilateral tubo-ovarian abscesses with generalized peritonitis.

TOA case 2

Young woman presenting with severe acute abdominal pain clinically suspect for perforated appendicitis.
Lab-findings at admission: WBC 10.6 - CRP 6 Two days later: WBC 19.7 - CRP 459

US  showed a large inhomogeneous masses left and right of the uterus, suspect for tubo-ovarian abscess (TOA).

There was also a paralytic ileus with secondary wall thickening of small bowel (b.) and hyperechoic preperitoneal and mesenterial fat.
Puncture of a little ascites yielded 2 cc of yellow, turbid fluid.

CT confirmed the US findings but additionally demonstrated a pyosalpinx (p.) within the tubo-ovarian mass on the right side. Antibiotics are started intravenously.

Two days later PCR of both cervical and urethral probes as well as the punctured fluid were positive for Chlamydia.
Rapid recovery with only antibiotics.

Tubo-ovarian abscess (TOA) containing gas. Tubo-ovarian abscess (TOA) containing gas.

TOA case 3

Large left sided TOA with air-configurations.
This is a rare finding in TOA, successful treatment with only antibiotics.

Bilateral infected endometriotic cysts. Bilateral infected endometriotic cysts.

TOA case 4  (infected endometriotic cysts)

These images are of a 29-year old woman, suspected for appendicitis. CRP 185, WBC 17.

US shows a normal compressible appendix, thereby excluding appendicitis.
Large, thick-walled, septated cystic structures, filled with debris-like material, were found on both sides of the uterus (ut.), touching each other posteriorly (“kissing ovaries”).
This is somewhat suspect for bilateral infected endometrotic cysts.

The patient was treated with antibiotics and laparoscopic drainage.
There was a protracted course, but eventually regression of the abnormalities.

An MRI six months later, demonstrated all the signs of deep infiltrating endometriosis, also invading the rectum, thereby confirming the diagnosis of endometriosis.

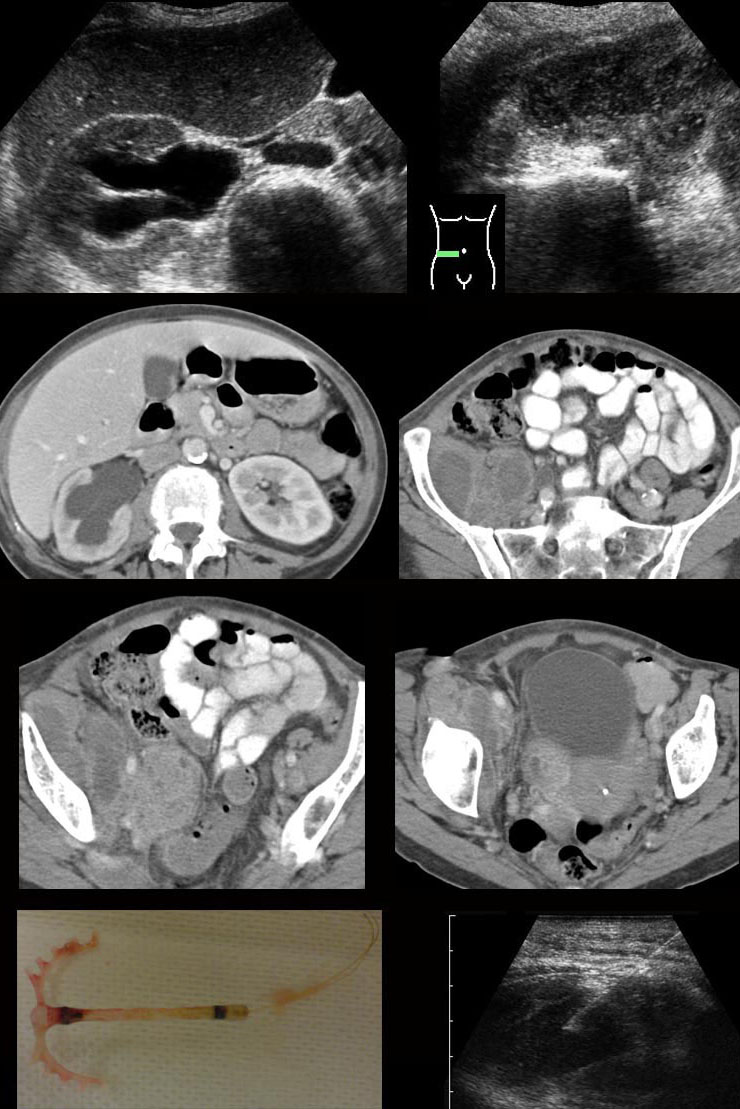

case 5 - Actinomycosis

A 52-year old woman presented with RLQ  pain for two weeks.

US and subsequent CT, showed a large, right sided iliopsoas abscess (absc.), in continuity with a TOA, causing hydronephrosis with cortical loss and a dilated ureter (u.).
There was an IUD in the uterus, the CRP was 240 and the WBC 26.

The IUD, that had been in place for 30 years, was removed.

The abscess was punctured and later drained percutaneously.
Gram stain of the pus showed gram-positive rods, suggestive of actinomycosis, and i.v. penicillin was started.
Cultures grew Actinomyces israelii 20 days later.

Eventually there was a complete cure without residual abnormalities.

Pyosalpinx Pyosalpinx

Pyosalpinx


case 1

these images are of a young woman with pain in the RLQ for two days and CRP 170 and WBC 14.

US respectively TVUS shows tortuous, thick-walled  tubular structure right of the uterus (ut.), in combination with the CRP, typical for a pus-filled Fallopian tube (pyosalpinx).

This patient was successfully treated with antibiotics but had recurrent episodes.
For this reason she underwent a tubectomy three years later.

Pyosalpinx Pyosalpinx

case 2

Young lady with pain RLQ since three days. CRP 100 and WBC 23, suspect for appendicitis.

US shows turbid peritoneal fluid and a dilated, thick-walled Fallopian tube,  filled with debris. Complete cure after antibiotics.

Pyosalpinx associated with IUD. Pyosalpinx associated with IUD.

case 3

Young woman with acute pain RLQ and a  CRP 180, suspect for appendicitis.

US confirms a IUD in the uterus and a large, right-sided pyosalpinx.

Complete recovery after antibiotics and removal of the IUD.

Torsion of enlarged adnex


case 1

Young female with acute onset of RLQ pain.

US reveals a large mass filled with hypoechoic sebum, harbouring a hyperechoic hairball (arrow) surrounded by multiple tiny  linear hair reflections.

CT confirms a dermoid cyst containing  a hairball (arrow) and surrounded by fat stranding, caused by venous congestion.
At surgery torsion of a dermoid cyst was confirmed.

Torsion of hydrosalpinx. Torsion of hydrosalpinx.

case 2

A 40 year old lady presented with acute RLQ pain.
CT revealed a dilated, fluid-filled salpinx.

Additional US showed that the salpinx was under tense pressure and “bulged” into the abdominal wall during compression (arrows).

An ischemic, twisted hydrosalpinx was found and laparoscopically removed.

Torsion of large dermoid cyst, missed by gynaecological TVUS. (h. = hairball) Torsion of large dermoid cyst, missed by gynaecological TVUS. (h. = hairball)

case 3

In this 45-year old woman with acute lower abdominal pain, TVUS was negative.
Subsequent transabdominal US showed a large dermoid (arrowheads) in a fairly high location.
CT confirmed the diagnosis.
At surgery a twisted dermoid cyst was found.

Endometriosis: chocolate cysts and “kissing ovaries”. Endometriosis: chocolate cysts and “kissing ovaries”.

Endometriosis

Endometriosis is endometrium outside the uterus.
There are three main types of endometriosis, based on where it is:


  • Superficial peritoneal lesions. This is the most common kind. There are lesions on the peritoneum.
  • Endometrioma or endometriotic cyst. These dark, fluid-filled cysts, also called chocolate cysts, form deep in the ovaries.
  • Deeply infiltrating endometriosis. This type grows under the peritoneum and can involve organs like the rectum or bladder.


case 1

Young woman with chronic lower abdominal pain and normal lab findings.

US demonstrates two large, thick walled ovarian cysts with homogeneous sludge-like (“chocolate”) contents behind the uterus.

The cysts are fixed to each other (“kissing ovaries”) and to the uterus.

Endometriotic cyst. Endometriotic cyst.

case 2

Patient with chronic lower abdominal pain and normal lab.

US shows 5 cm, thick-walled cyst with triangular demarcation from the uterus, indicating adhesions.

At TVUS the cyst adhered completely to the uterus and during compression with the vaginal probe, it was not possible to separate the cyst from the uterus.

Enlarged cystic adnex

In the majority of women with acute abdominal pain and an enlarged, cystic adnex, the final diagnosis will be an ordinary haemorrhagic, persistent or ruptured functional cyst.
There will be no other therapy than pain medication and reassurance.

There are however several other pathological adnex-conditions that do have therapeutic consequences, and thus should be excluded like endometriotic cyst, dermoid cyst, a benign or malignant tumor, hydrosalpinx or a tubo-ovarian abscess (see Table).

Next to clinical features and lab findings, US has an important role to differentiate these conditions from a functional cyst.

Therefore in case of relatively mild symptoms and conservative treatment, a cystic adnex is generally followed up by US after six weeks.
If completely disappeared by then, it must have been a case of a hemorrhagic, persistent or ruptured functional cyst.

Ruptured endometriotic cyst Ruptured endometriotic cyst

case 3

Young female with peracute pain in the lower abdomen since 4 hours. WBC 20, CRP 17.

US shows large, thick-walled, partly cystic  mass right of the uterus and some turbid free fluid (*).

TVUS shows that the endometriotic cyst is filled with homogeneous, hyperechoic fluid (old blood) and is easily compressible (as expected after rupture).

Ruptured benign mucinous cystadenoma. Ruptured benign mucinous cystadenoma.

Ruptured cystadenoma.


case 1

An elderly lady presented with peracute RLQ pain and leucocytosis.

US and subsequent CT showed a collapsed, multicystic tumour with thick-walled, hypervascular septa and free fluid (*).
The bladder (b.) was empty.

Surgery revealed a ruptured cystadenoma, which was benign at histology.

Ruptured mucinous cystadenoma. (ut. = uterus) Ruptured mucinous cystadenoma. (ut. = uterus)

case 2

These images are of a woman of 56 yrs with diffuse abdominal pain and bloating.
US revealed a very large cystic, septated mass of 15 x 18 x 20 cm.
There was no ascites. She was planned for laparotomy within one week.

Three days later she presented at the hospital with acute pain.
US showed a collapsed cyst with massive intra-peritoneal fluid.

At laparotomy a ruptured, benign, mucinous cystadenoma was removed.
Twelve years later she is still doing fine.

Ruptured dermoid cyst Ruptured dermoid cyst

case 3

This young woman presented with acute lower abdominal pain.
US showed a right sided hyperechoic mass and a lot of free fluid (not shown here). CT confirmed a small dermoid cyst and hyperdense ascites, probably blood.

Operation revealed a ruptured dermoid cyst, the free fluid is a mixture of blood and sebum.

Post Partum

Right ovarian vein thrombosis (*). a and v = iliac artery and vein Right ovarian vein thrombosis (*). a and v = iliac artery and vein

Ovarian vein thrombosis


case 1

Four days after delivery this young woman developed pain in the RLQ and a CRP of 125.
At the spot of maximum pain an ill-defined, solid, tubular, hypoechoic structure (*) was seen, surrounded by hyperechoic, non-compressible, inflamed fat (arrowheads).

CT confirmed an ovarian vein thrombosis. The surrounding fat-stranding suggested a  concomitant, phlebitis-component.
Complete recovery with antibiotics and anticoagulant therapy.

Right ovarian vein thrombosis in patient after hysteroscopic myomectomy. Right ovarian vein thrombosis in patient after hysteroscopic myomectomy.

case 2

This patient presented with RLQ pain 5 days after the procedure.
US demonstrated a thrombus in the right ovarian vein, there was no clear phlebitis component.

CT confirmed a thrombus in the right ovarian vein, without any fat stranding.
CRP remained low.
Complete cure with only anticoagulant therapy.

Epilogue

The author thanks his fellow radiologists and gynaecologists for their valuable help in collecting all the educational material.
A special thanks to gynaecologist Jan Lind, for his advice in editing the manuscript.

Charity

All the profits of the Radiology Assistant go to Medical Action Myanmar which is run by Dr. Nini Tun and Dr. Frank Smithuis sr, who is a professor at Oxford university and happens to be the brother of Robin Smithuis.

Click here or on the image below to watch the video of Medical Action Myanmar and if you like the Radiology Assistant, please support Medical Action Myanmar with a small gift.
